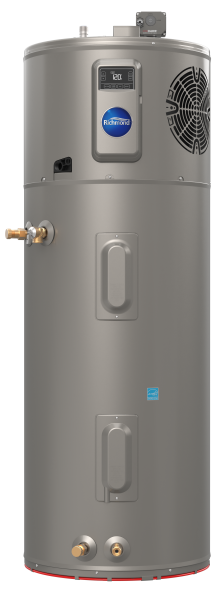

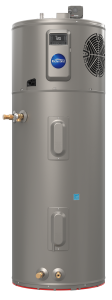

Encore Series: Hybrid Electric Water Heater Gen 5

Efficiency

• Up to 4.07 UEF reduces operating cost
• Title 24 Compliant (JA13 Ready)
• 4x the efficiency of a standard electric tank
• Energy Star® rated

Performance

• Delivers hot water faster than most standard electric water heaters
• Ambient operating range: 37-145º F offering more days of heat pump operation annually

Easy Installation

• 0" Clearance requirement on sides
• Condensate connection on front of heater so can be installed against a wall
• Easy access side connections
• Quick access to electrical junction box
• Easily replaces a standard electric water heater

Integration

• LED Screen with built-in water sensor alert with audible alarm
• Integrated EcoNet® WiFi-connected technology and free mobile app gives users control over water heater, allowing for customizable temperature, vacation settings, energy savings and system monitoring at home or away

Operation Modes

• Energy Saver
• Heat Pump
• High Demand
• Electric
• Vacation/Away: 2-28 days (or placed on hold indefinitely)

Plus...

• Available in 30 and 15 AMPs
• Premium grade anode rod with resistor extends the life of the tank
• 3/4" NPT water inlet and outlet; 3/4" condensate drain connections
• Incoloy stainless steel resistor elements
• Dry-fire protection
• Easy access, top mounted washable filter
• 2" Non-CFC foam insulation
• Enhanced flow brass drain valve
• Temperature and pressure relief valve installed
• Design certified to NSF/ANSI 372
