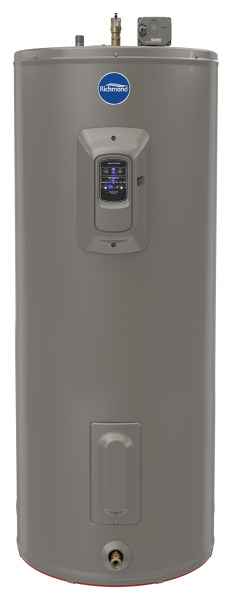

Encore Series Smart Electric with LeakGuard

Encore® Smart electric water heaters with LeakGuard is engineered for longer life with built-in leak detection and auto water shutoff

Smart Technology

• Integrated leak detection and prevention system with factory installed auto water shut-off valve limits leaks to no more than 20 ounces of water
• LeakSense™ Built-in Leak  Detection System detects any leak large or small, internal or external
• Built-in EcoNet® WiFi technology for temperature control and immediate notification about leaks and service needs from anywhere
• Know before hot water runs out with the Hot Water Availability indicator in the EcoNet® app
• Hands-free voice control with Alexa and Google Nest to easily adjust set temperature
• Element Health Indicator shows exactly which element needs to be replaced and when

Easy to Install & Service

• Diagnostic mode gives diagnostic info while at the water heater to expedite service
• Durable brass drain valve helps drain the tank faster to reduce time on the job

Efficiency

• .92 - .93 UEF
• Dual 5500 watt stainless steel heating elements

Performance

• FHR: 55 - 72 gallons based on gallon capacity
• Recovery: 25 GPH at a 90° F rise

Longer Life

• Self cleaning fights sediment build-up to prolong tank life and maintain efficiency and tank capacity
• Premium upgraded anode rod provides long-lasting tank protection

Features

• High performance and lower operating cost
• Compliant with many electric utility incentive programs
• Electric junction box located above heating elements for easy installation
• Over-temperature protector cuts off power in excess temperature situations
• Temperature and pressure relief valve included

Installation Note

• 5500 watt models require a 30A circuit breaker and 10AWG wire size; please refer to the Use and Care document for additional circuit sizing guidance as well as other helpful installation information.
